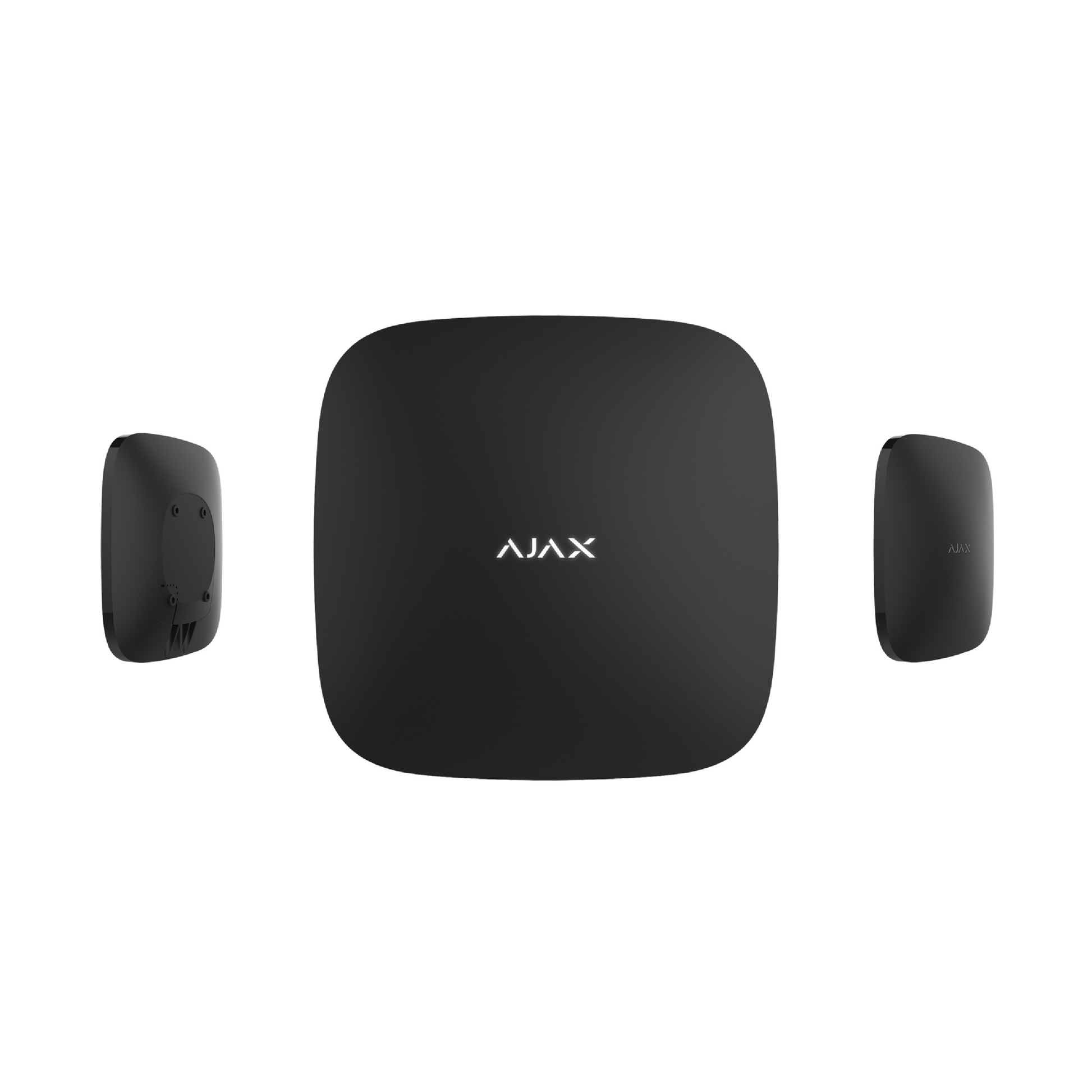

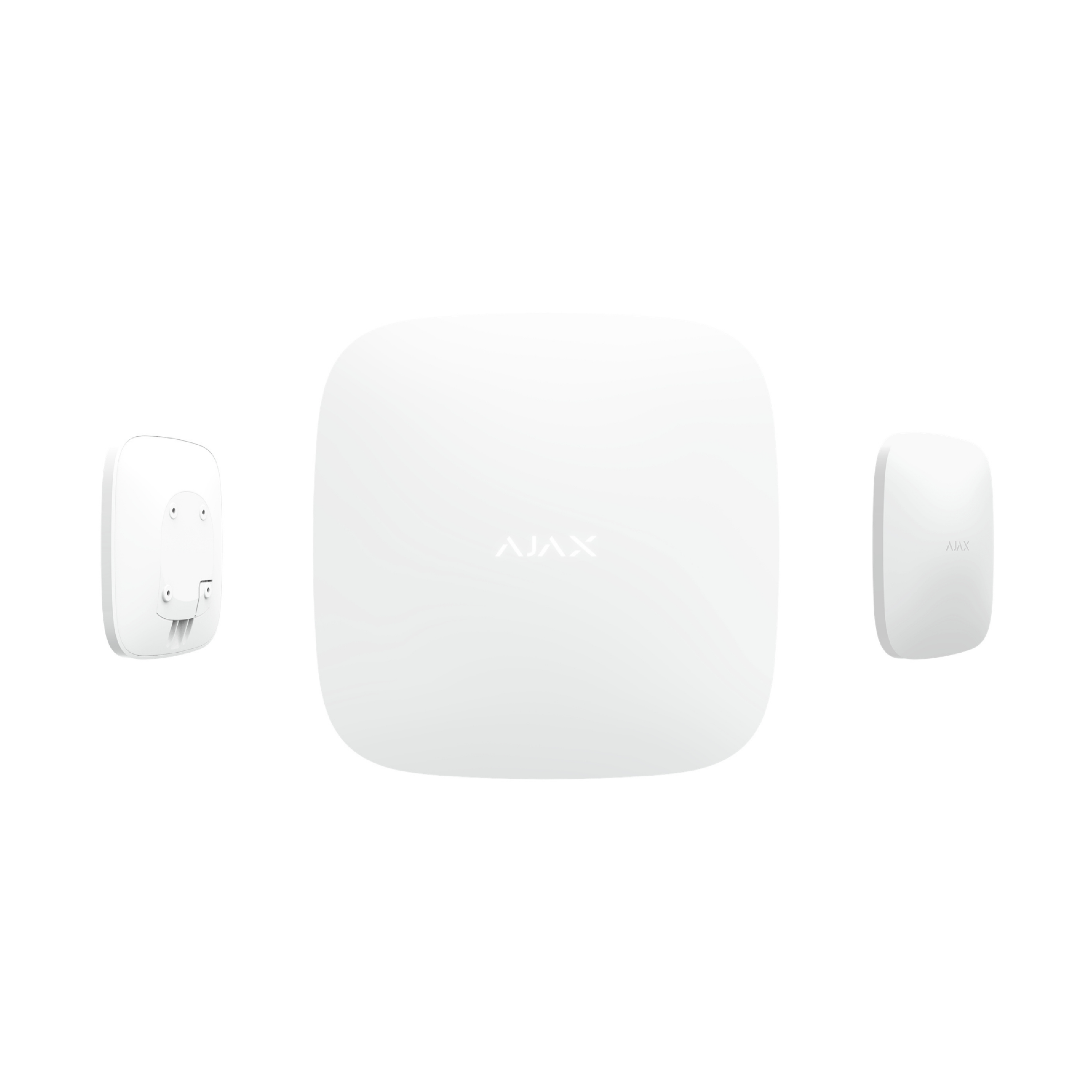

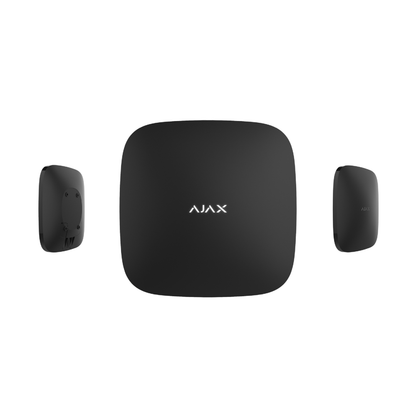

Ajax Hub 2 Plus: 2nd Generation Plus Central Processing Unit

Ajax Ultra DP: Dual-link reliability with ready-to-use configuration.

Ajax Ultra DP offers a simple solution for configuring dual-channel alarm signal transmission (DP2, DP3, or DP4). This product complements Ajax SIM to ensure stable and continuous system operation from the start. Everything can be set up in minutes thanks to intuitive operation on the application.

Ajax SIM: Stable connection, effortless.

Ajax SIM provides instant and reliable mobile connectivity right from the start. No complicated setup, no cumbersome activation required — this SIM card is almost completely self-contained. Users can enjoy unlimited data and a stable connection from the very first minute.

Stay connected — via cable, Wi-Fi, LTE

Connectivity to the outside world is vital for an alarm control center. This stability ensures that alarm signals are transmitted quickly to the Alarm Acquisition Center (ARC) and system users.

The Hub 2 Plus offers absolute stability in outbound communication. The device has four communication channels and supports LTE. This configuration allows connection to two separate internet providers via Ethernet and Wi-Fi, and provides two backup mobile services. Switching between channels is seamless and takes only seconds.

Verify the alarm with a photo in 9 seconds.

Image verification is the future trend of the security industry. This technology is the optimal solution for both residential and commercial properties — it's both accessible and ensures privacy. A series of animated images from MotionCam sensors allows users and monitoring centers to assess the situation in real time. The cameras are only activated when an alarm is triggered, never on demand.

Hub 2 Plus can manage up to 200 MotionCam sensors and send alarm confirmation with photos to the user and the monitoring company in just a few seconds. 9 seconds , even when using a SIM card for data transfer, thanks to LTE support.

Ensure the transmission of alarms and verification images.

wizard
We developed the Jeweller radio protocol to ensure continuous operation of devices within the system. Jeweller enables bidirectional communication between the hub and sensors within range. up to 2,000 meters . At the same time, this protocol allows for remote device control and alarm signal transmission in less than 2,000 meters. 0.15 seconds .
Jeweller uses time frames to synchronize communication, authentication to prevent spoofing, and encryption to prevent data leaks. It's also an energy-efficient protocol, allowing the sensor to operate for years on its built-in battery.

Wings
Wings is an advanced radio protocol developed for fast image data transmission over long distances. It utilizes the Hub 2 Plus's own antenna for increased reliability. A packet checking and reloading algorithm allows Wings to transmit images over long distances. Up to 1,700 meters , even with unstable signals. Thanks to Wings, users and monitoring centers can view the first captured images in just a short time. 9 seconds since the alarm was sounded.

Automated security

Hub 2 Plus support 64 automated scenarios , minimizing human intervention. The system can automatically turn security modes on/off according to a schedule. It can also:

• Activate the smoke machine when an intruder is detected.

• Cut off the power and turn on the emergency lights in case of a fire.

• Turn off the water supply if a leak is detected.

Additionally, the Hub 2 Plus can control lights, electric locks, roller doors, etc. Scenarios can be triggered based on changes in security modes, alarm signals, or commands from the push button.

Protect large areas and complex structures.

Office buildings, factories, or multi-story villas with ancillary structures — Hub 2 Plus is ready to protect even the most complex properties. The new Hub can manage 200 devices , radio coverage up to 2,000 meters , maximum 35 km² when combined 5 ReX devices . It can also manage them. 25 security teams with a total 200 users , allowing for clear area partitioning and access control.

• 25 security teams

• 200 users

• 200 devices in the system

• 35 km² maximum coverage area

Anti-vandalism

Regardless of any issues that occur with the Hub 2 Plus, both the monitoring company and the user will receive immediate notification. A tamper alarm will be triggered if an intruder attempts to remove the device. If the Ajax Cloud server loses connection with the hub, the user will be notified shortly thereafter. 60 seconds Thanks to its short ping cycle, the Hub 2 Plus continues to protect assets in the event of a power outage. 15 hours Thanks to the built-in backup battery.

• Equipment test cycle: from 12 seconds

• Hub disconnection detected: within 60 seconds

• Operates on backup battery: up to 15 hours

Ready for the future

Hub 2 Plus runs on the operating system OS Malevich Developed by Ajax Systems, OS Malevich is extremely stable, immune to viruses, and protected from cyberattacks.

The modular architecture allows OS Malevich to be updated frequently. The system receives new features several times a year through... OTA update (Over-The-Air). This process is quick, requires no technician, and only occurs when the security system is turned off.

The Hub 2 Plus is Ajax's most efficient control center, featuring a faster processor. 4.5 times Compared to Hub 2, it has double the flash memory. 8 times . This hardware configuration ensures the device will operate for many years while remaining up-to-date.

App control

We completely eliminated physical buttons and outdated interfaces. The application offers greater convenience and security. It connects to the hub via a secure Ajax Cloud channel—located in multiple AWS data centers.

Users can manage security, adjust settings, configure devices, create scenarios, and monitor events—all on their smartphone or PC, from anywhere.

Easy installation

The Hub 2 Plus is ready to use right out of the box, complete with power supply, backup battery, and pre-installed communication module. Simply plug it in, connect to the internet, insert your SIM card, and scan the QR code using the app to begin setup.

Thanks to the stand SmartBracket : No need to disassemble the device to mount it on the wall.

All security system settings can be configured on the app, even when the user is remote: adding sensors, CCTV cameras, new users, checking signals, creating security groups, scenarios, or connecting the hub to the monitoring company.
